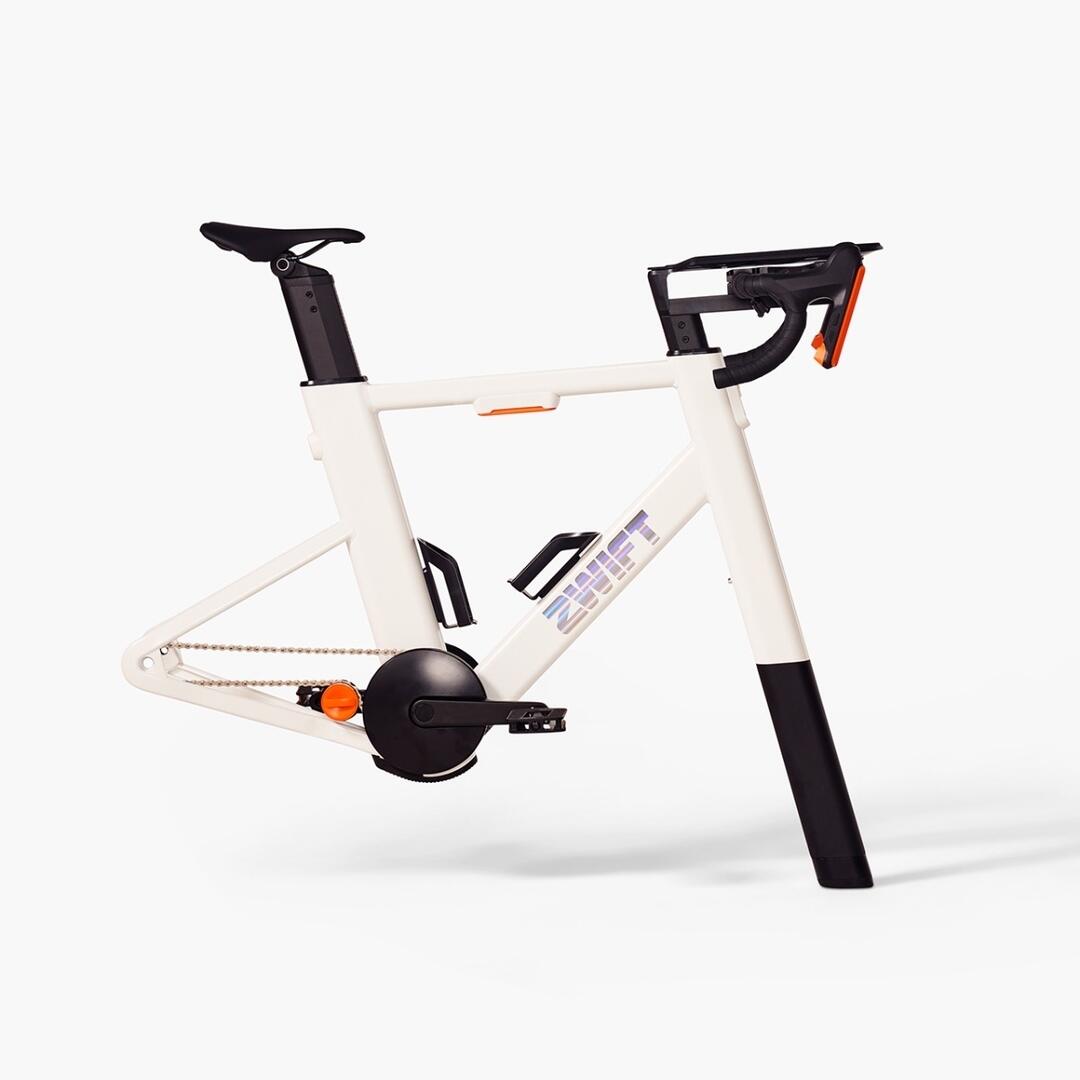

Upgrade to Zwift Ride Smart Frame and transform your Zwift Ready or Zwift Compatible KICKR smart trainer into an always-ready, all-in-one smart bike. Built-in handlebar controls Zwift and enables customizable virtual shifting. Zwift Ride Smart Frame is easily adjustable, making it perfect for everyone at home. Keep your outdoor bike ready for the outdoors and upgrade to an all-in-one indoor cycling solution that’s always ready to go.
FEATURES
Quiet & Compact
Zwift Ride Smart Frame is powerful, yet keeps a low profile: it takes up less space than a traditional bike and trainer setup, and can be easily packed away and set back up again if needed.
Simple Setup
Set up the Zwift Ride Smart Frame easily on your own. All you need is the included Frame Key and a compatible smart trainer.
Easily Adjustable

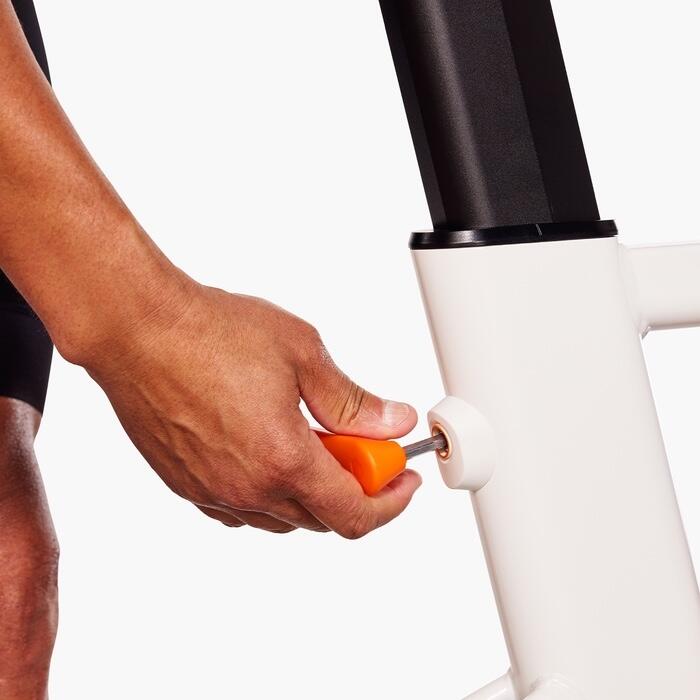

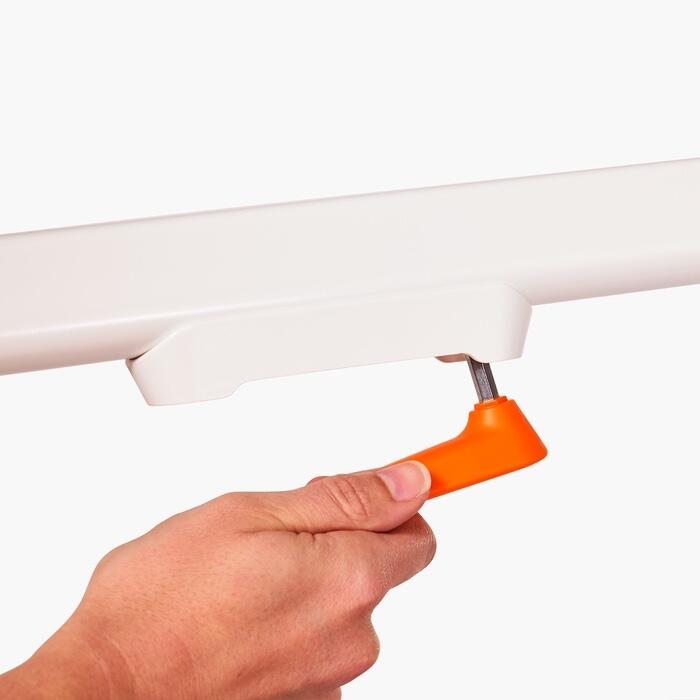

Zwift Ride Smart Frame is easily adjustable for riders between 5’ and 6’ 6”. All it takes to adjust the bike and share the fun is the Frame Key stored in the bike frame.
Effortless Control

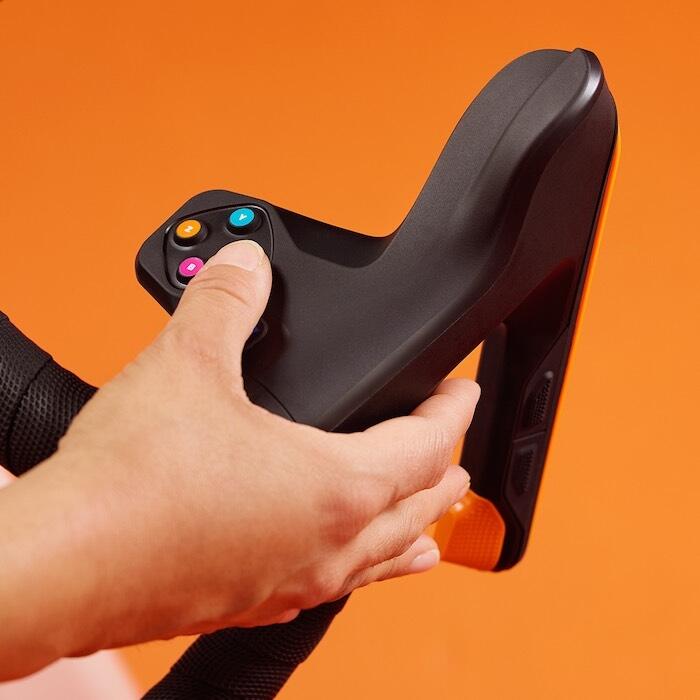

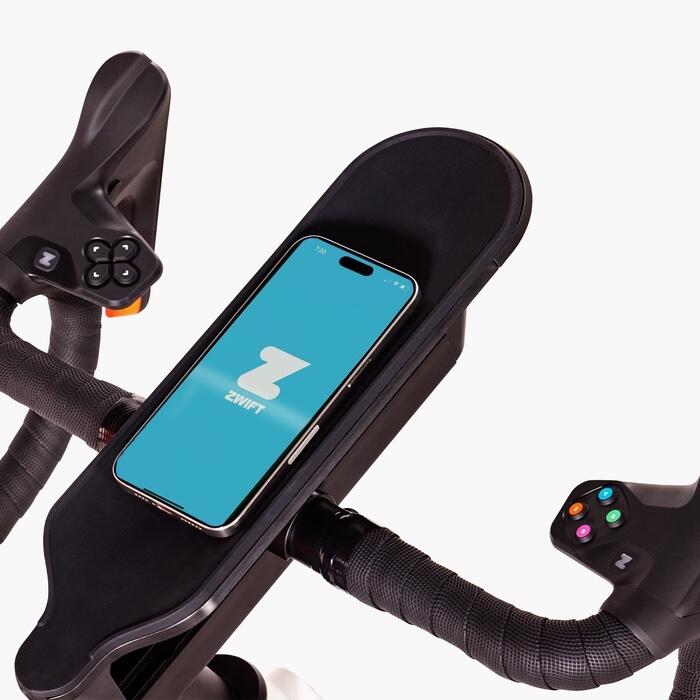

Control Zwift easily from your handlebars. Queue workouts, use PowerUps, and send RideOns—all without pausing your ride.
Always Ready
Designed for the home, Zwift Ride Smart Frame is ready to ride whenever you are.

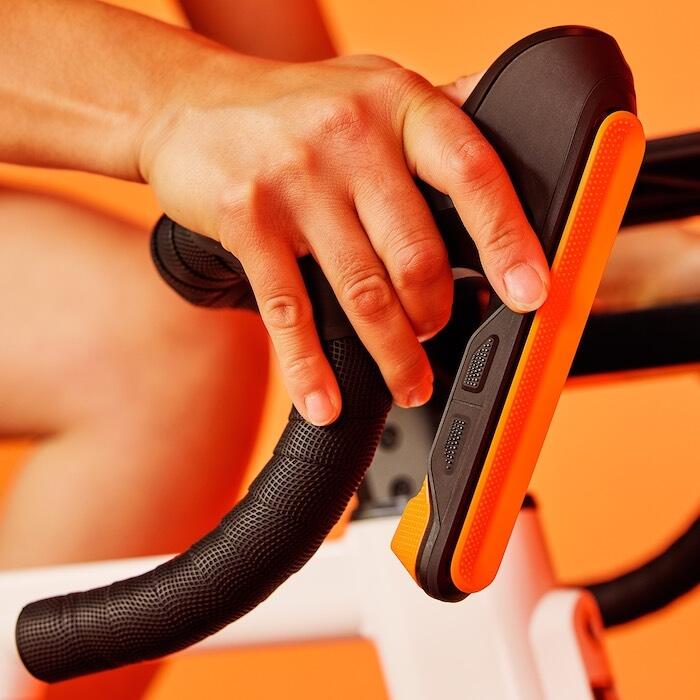

Smooth Shifting
Experience flawless, silent gear shifting with a customizable setup, e
SPECIFICATIONS
Rider Fit Specs
- Rider Fit Range: 152 - 198 cm
- Saddle Height Min-Max: 59.9 - 86.5 cm (center bottom bracket to top of saddle)
- Stepover Height: 76.4 cm
- Max Rider Weight: 120 kg
- Crank Length: 170mm
Product Dimensions and Frame Specs
- Product Dimensions: 110 cm L x 43.2 cm W
- Product Weight: 25.5 kg
- Drivetrain: Chain (KMC Z1 narrow 3/32" width)
- Pedals: Flat Included (compatible with all standard road and mountain pedals)
- Saddle: 160mm W x 245mm L
Additional Handlebar Specs
- Handlebar Height Min-Max: 86.3 - 102.4 cm
- Handlebar Width: 42 cm (center to center)
- Integrated rechargeable controllers with 20 hrs. Per charge
- Handlebar Controller Power: Built-in rechargeable lithium-ion battery (1050 mAh)
- Handlebar Controller Power requirements: USB-A, 5v, 1A
Compatibility
- Compatible with Zwift Cog v1 & Zwift Cog v2. Updated Zwift Cog v2 included with purchase.
- Update to latest firmware using manufacturer’s app.
- Front Leg Riser Foot included for trainer height alignment
Connectivity
- Not compatible with ANT+ dongles
- In-game shifting, steering and UI control via handlebars are wirelessly transmitted via Bluetooth
- Apple TV users are required to pair through Zwift Companion app as a bridge to address the limited number of Bluetooth connections
ZWIFT COG V2 compatibility
- Zwift Cog V2 is only compatible with the smart trainers listed in the ZWIFT product selector
- Works with WAHOO
- Designed to fit a Shimano Hyperglide freehub body.
- Not compatible with Shimano Micro Spline, SRAM XD/XDR, and Campagnolo freehub bodies.
- For use on Direct Drive Indoor trainers only.
Additional Specs
- Unit has a 14-tooth Cog - this COG version is NOT compatible with TACX smart trainers, as well as Elite smart trainers which require an alternate 18-tooth cog version
- 10 sprocket positions for quick chain alignment.
- Material: Plastic housing and lockring with steel sprocket
