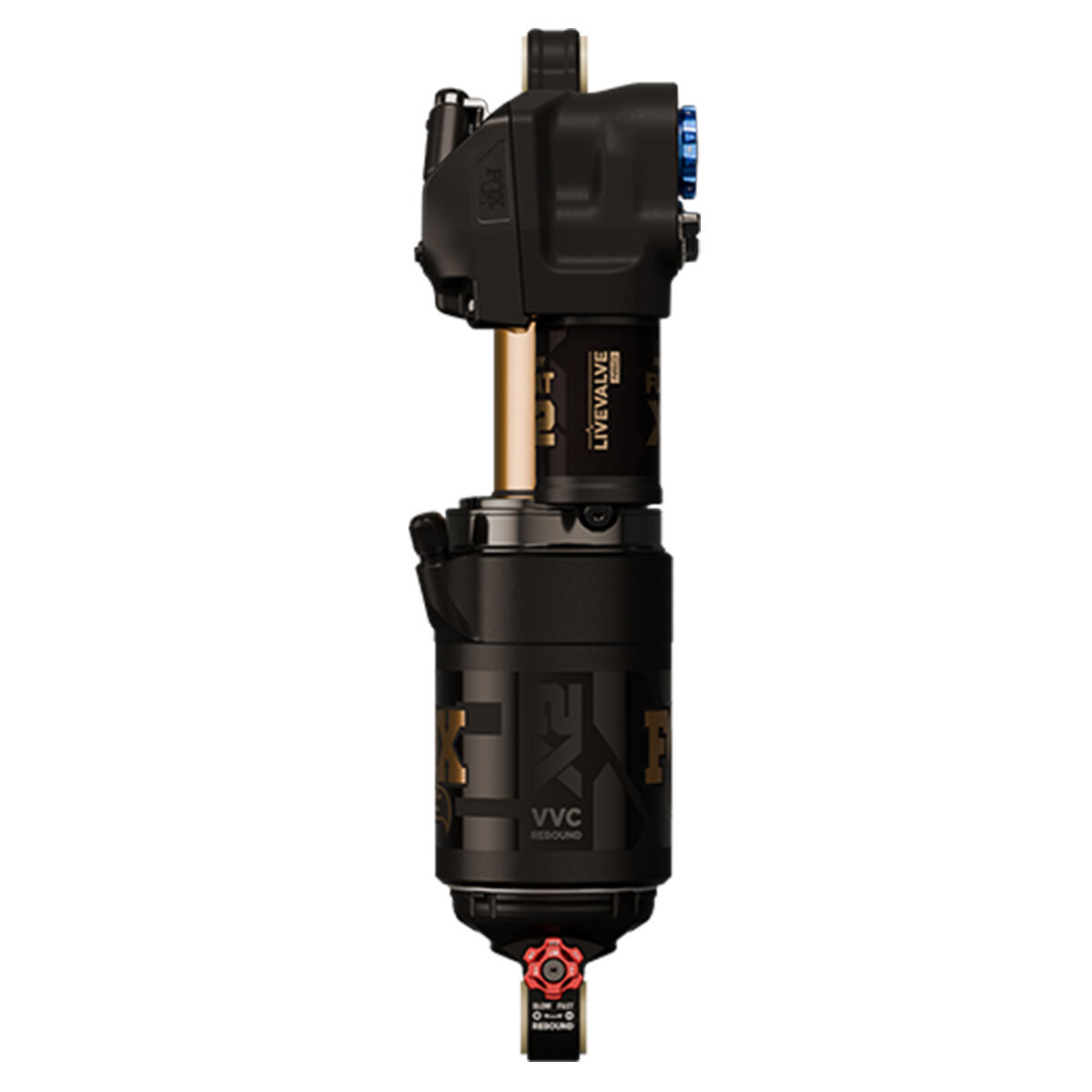

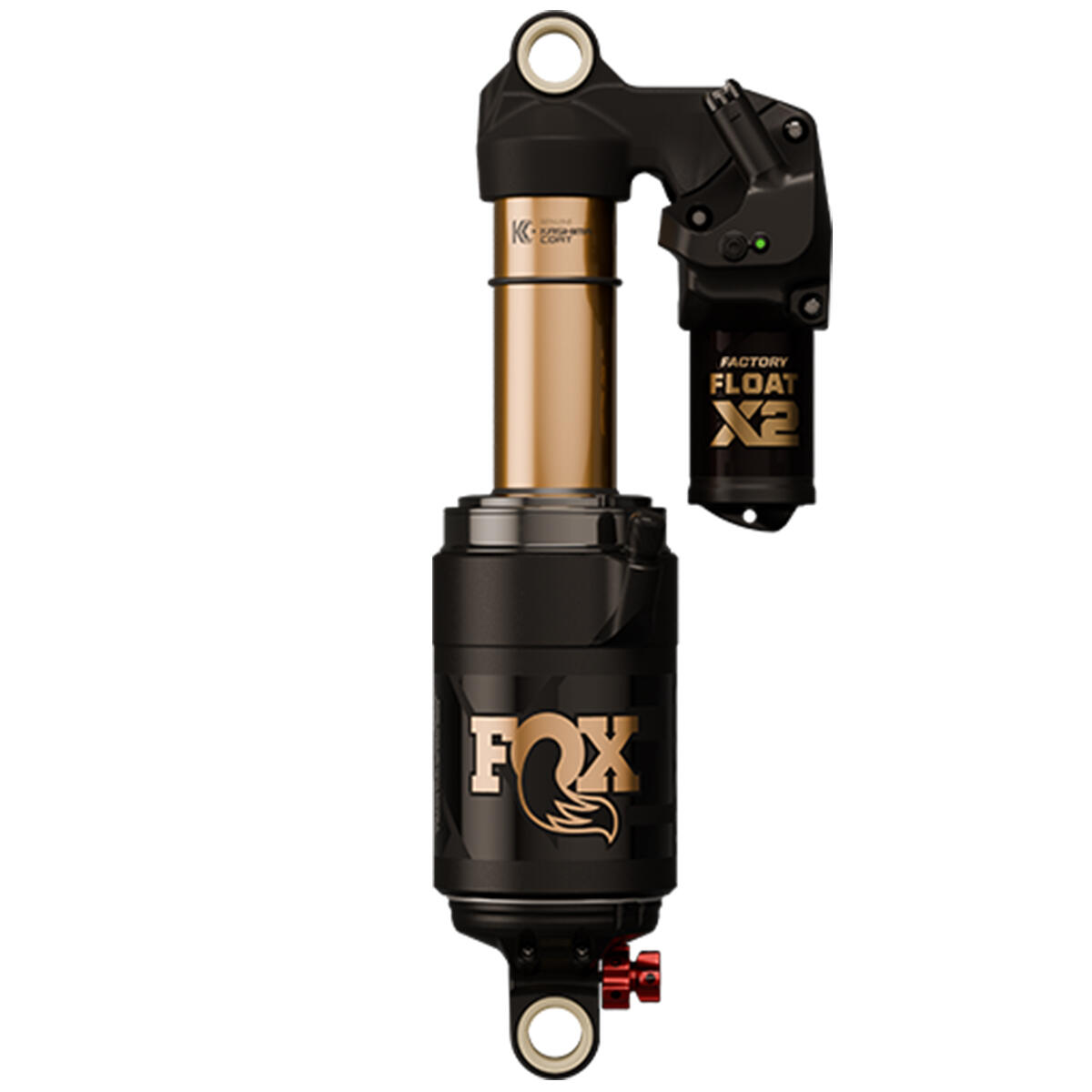

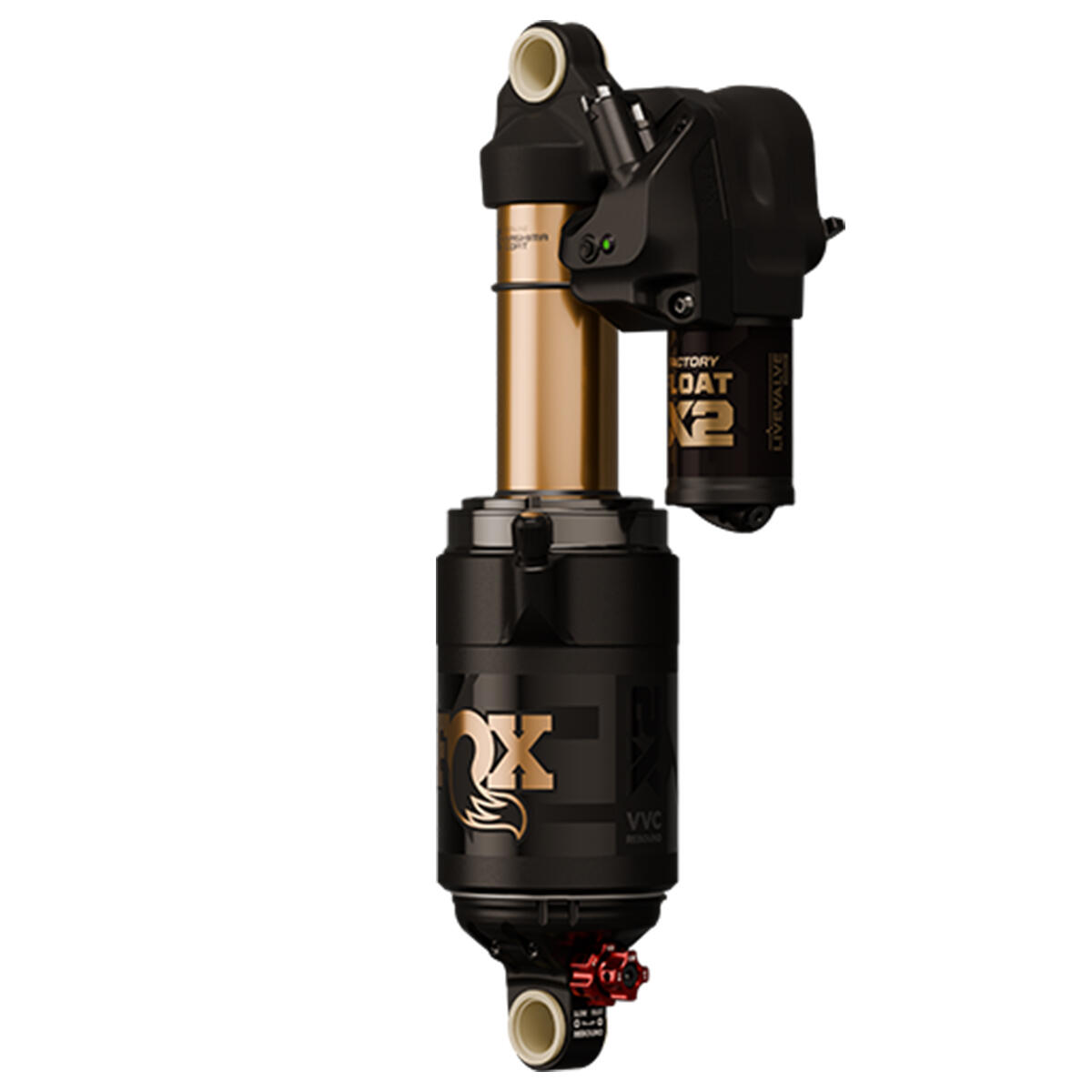

Fox Float X2 Live Valve Neo Factory Shock, Metric 230X65, Kashima

FOX - FLOAT X2 LIVE VALVE NEO FACTORY SHOCKS

The Perfect Setting—In Every Moment
Trail conditions change constantly. Rider inputs change instantly. The FLOAT X2 Live Valve Neo adapts just as fast. At the core of the system is Live Valve Neo, which reads terrain and rider inputs 400 times per second, automatically opening or firming the shock’s compression circuit in as little as 1/70th of a second. The result is suspension that is:

• Firm when efficiency matters
• Plush when traction is critical
• Optimized at every moment on the trail

Unlike other electronic systems, Live Valve Neo is fast enough to confidently default to a firmer setting—without interrupting ride feel. This ability has already proven itself at the highest levels of racing, helping professional gravity athletes achieve winning performances.

The Definitive Gravity Shock—Now Faster
The FLOAT X2 has long been recognized as the definitive gravity air shock—delivering exceptional sensitivity, support, and adjustability for Enduro and Downhill racing.  With Live Valve Neo integration, that performance is elevated even further.

Monotube construction increases durability and enables pressure balancing, improving damping response and consistency under the highest loads.

Live Suspension Gives You More
Live Valve Neo doesn’t replace rider preference—it enhances it.  A 7-position Firm Mode adjust dial allows riders to fine-tune how supportive the shock feels when firmed, while The Low Speed Compression and High Speed/Low Speed Rebound dials let riders dial in their ideal descending performance. Our FOX Bike App provides the opportunity to further adapt Live Valve Neo to your ride style - with preset tunes or customization through our Precision Mode adjustments.

The combination of pressure-balanced damping, 4-way adjustability, and ultra-fast electronic control creates a system that keeps tires glued to the ground while maintaining chassis stability at speed. The ride sensation is often compared to a trophy truck—where the bike remains composed while the suspension absorbs the terrain beneath it.

For gravity riders, that translates directly into:

• Increased traction
• Reduced fatigue
• Greater confidence at speed

Own the Moment
The FLOAT X2 Live Valve Neo represents a new benchmark in suspension performance—where cutting-edge mechanical engineering meets real-time electronic intelligence. Because in gravity, speed comes from control—and control comes from traction.

Own Gravity - Own Traction.

• Uses same battery as all other Neo products
• Pressure Balanced Monotube architecture for GRIP X2 fork damper-level performance in a rear shock
• Larger 1/2” diameter shaft for increased strength and durability
• 1cc increment air volume adjustments for ultra-precise spring rate tuning (Max 350psi)
• Updated Variable Valve Control (VVC) on high-speed rebound
• Parallel reservoir orientation available for frame clearance (select sizes)
• 7-click Firm mode adjust, 11-click Low-Speed compression (same as LV Neo Float X/DHX)

SPECS

• Series: Factory
• Upper Tube Finish: Kashima
• Sizes (Metric): 210x55, 230x57.5, 230X60, 230X65, 250X75
• Sizes (Metric Trunnion): 205x62.5, 225X75

NOTE: The Live Valve Neo Kit (which includes sensors, Controller battery and mounting hardware) is sold separately and is required for the FLOAT X Live Valve Neo shock to function.
